Vector graphics

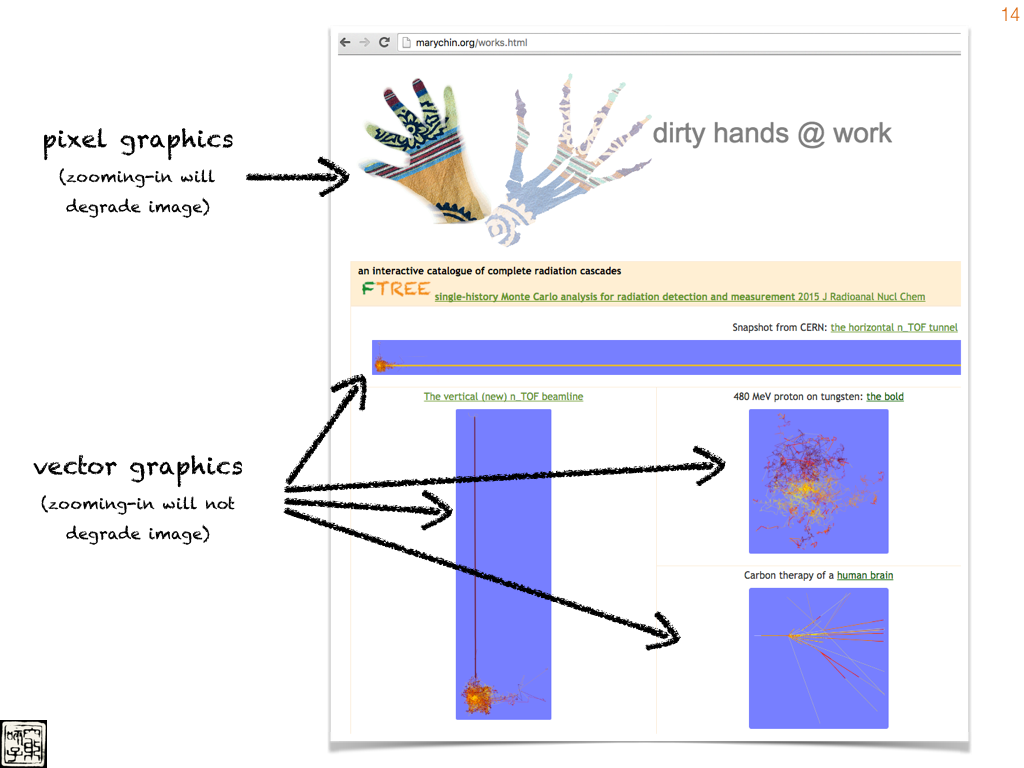

Here’s an example. Zooming in pixel graphics will degrade the image. Zooming in vector graphics won’t
