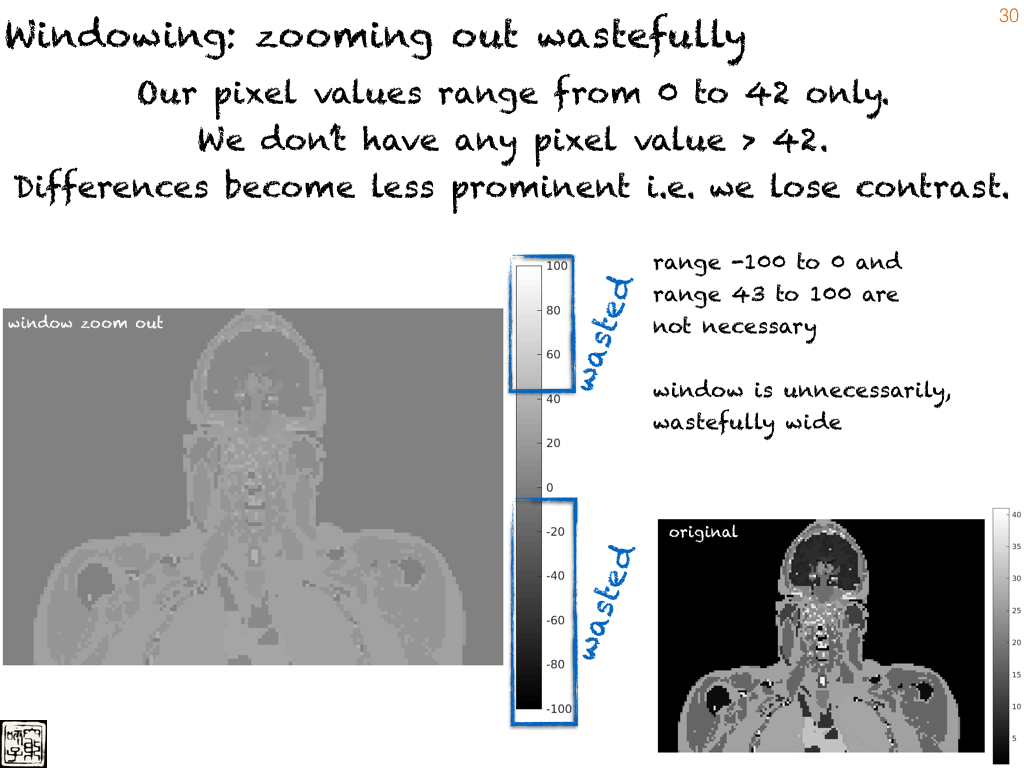

Wide windows

Setting the window wider than the full range of pixel values will reduce contrast by not making full use of the full range of colours.
